Hydraulic Solver

Array
225,00 €

Product Info

Version 19.0 - September 2020

PrintEmail

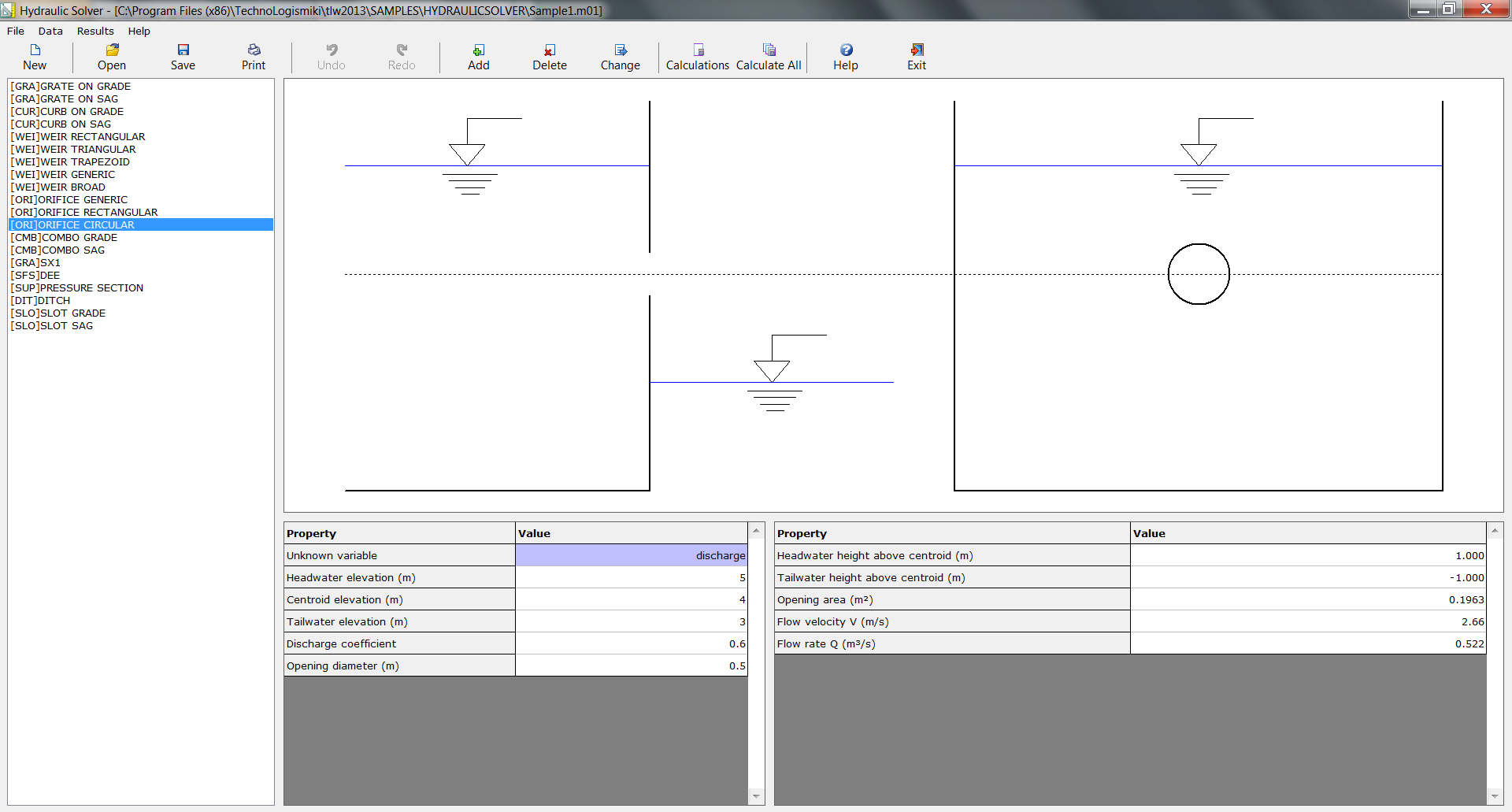

Hydraulic Solver allows the calculation of flow problems in: sections with free surface, sections under pressure, orifices, weirs, grates, curbs, combination inlets, ditches, slots, pumps, reaction turbines, impulse turbines and hydropower pumps. Each solver may have an unknown variable which is selected by the user. For example, sections with free surface may have the flow depth or the flow rate as the unknown variable, among others.

Features

  • Solve an unlimited number of problems simultaneously.
  • Integrated solvers:
    • Solve any section either with free surface or under pressure.
    • Orifices
    • Weirs
    • Grates
    • Curbs
    • Combination inlets
    • Ditches
    • Slots
    • Pumps
    • Reaction turbines
    • Impulse turbines
    • Hydropower pumps.

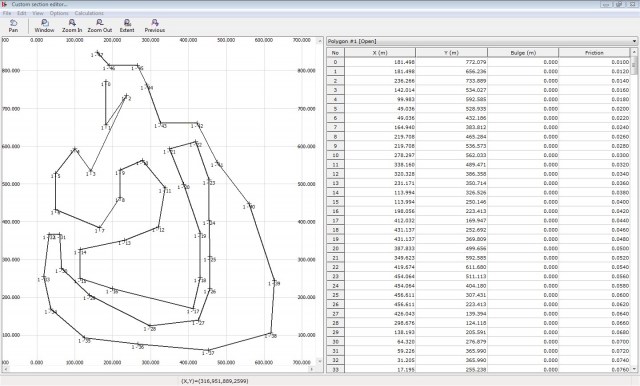

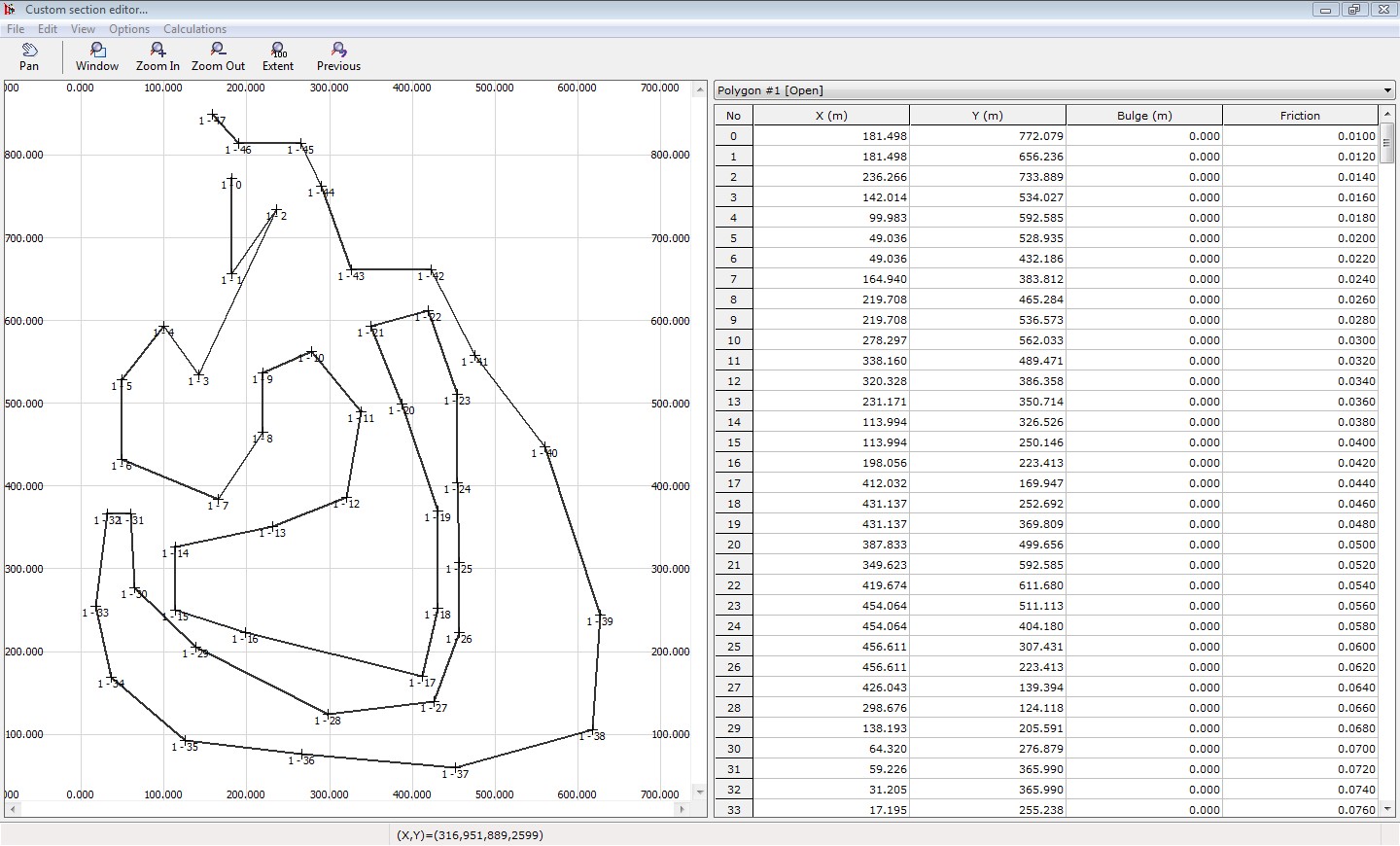

  • The section may be consisted of any number of open or closed curvilinear polylines.

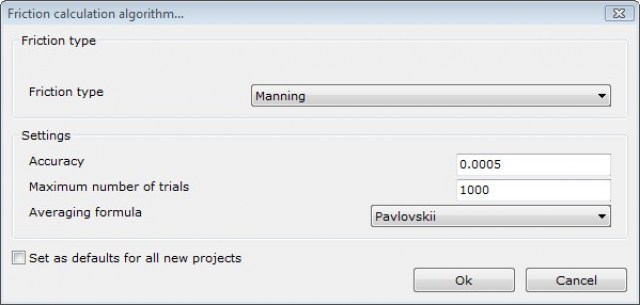

  • The solver uses exact analytical relations for curved edges and the most popular averaging friction formulas:
    • Lotter
    • Cox
    • Pavlovskii
    • Colebatch
    • Horton.
  • The solvers may calculate a variable which is selected by the user.
  • Import / export data from / to DXF/GIS/GPS/GRD.
  • Import data and export results from / to Microsoft Excel or other spreadsheets.

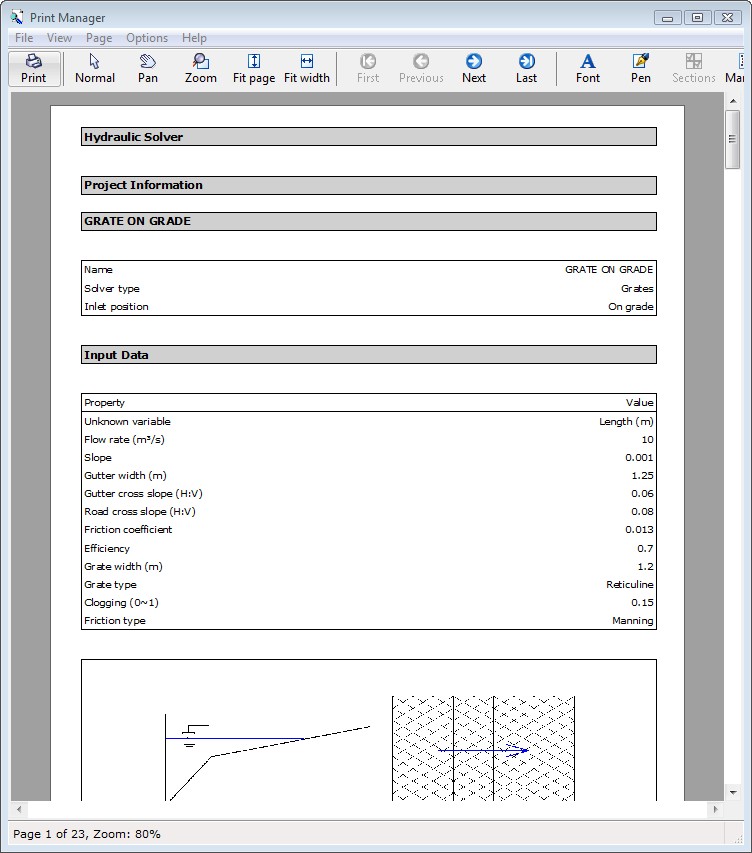

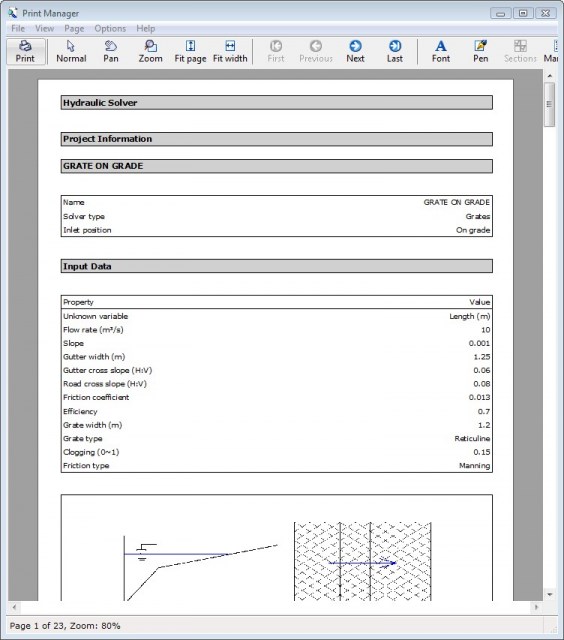

  • Professional reports and printouts in Microsoft Word or directly to the printer.
  • Databases:

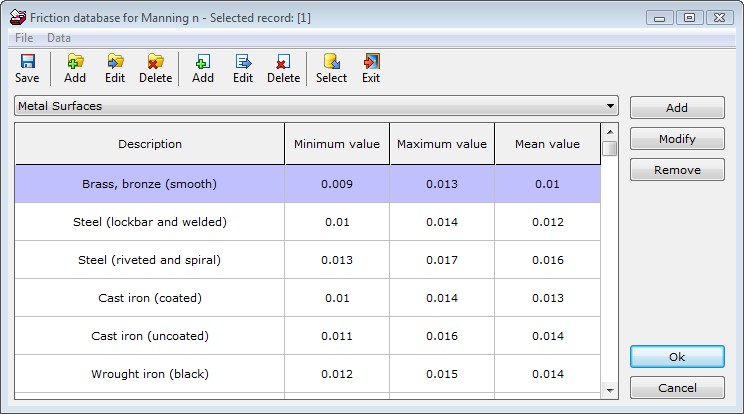

    • friction coefficients
    • materials.
  • Enhanced Microsoft Word reports.

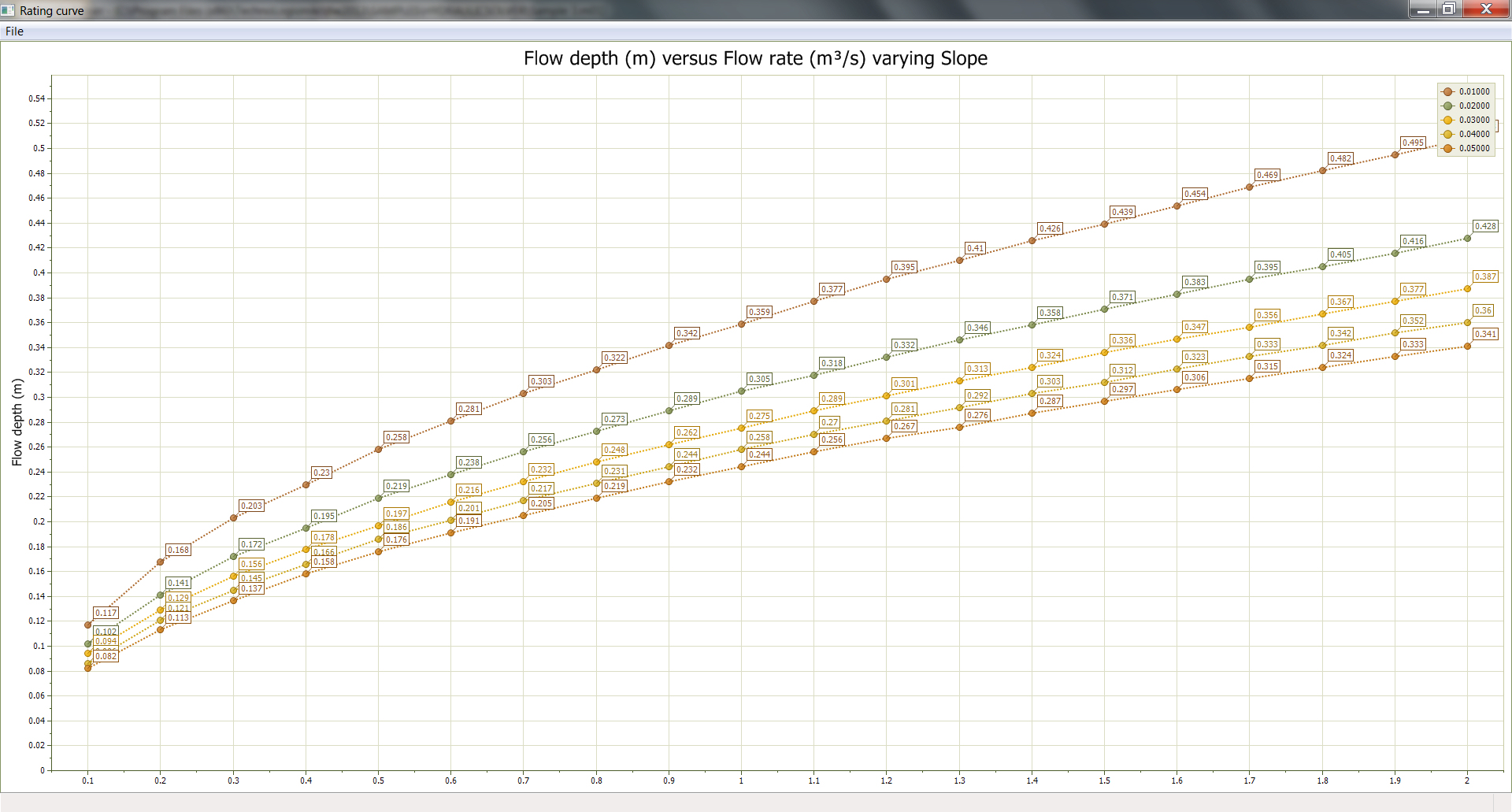

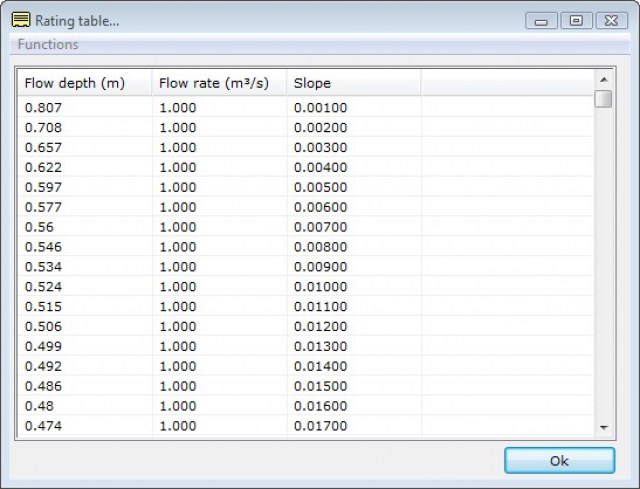

  • Tabulated results using rating tables or rating curves from one to five variables.
  • Graphical representation of selected output variables.
  • Sensitivity analysis.
  • Full compatibility with previous versions of the program.
  • Multilevel undo and redo.
  • Tip of the day.
  • Full user guide.
  • Tutorials.
  • Live Update.
  • English and Greek interface.
