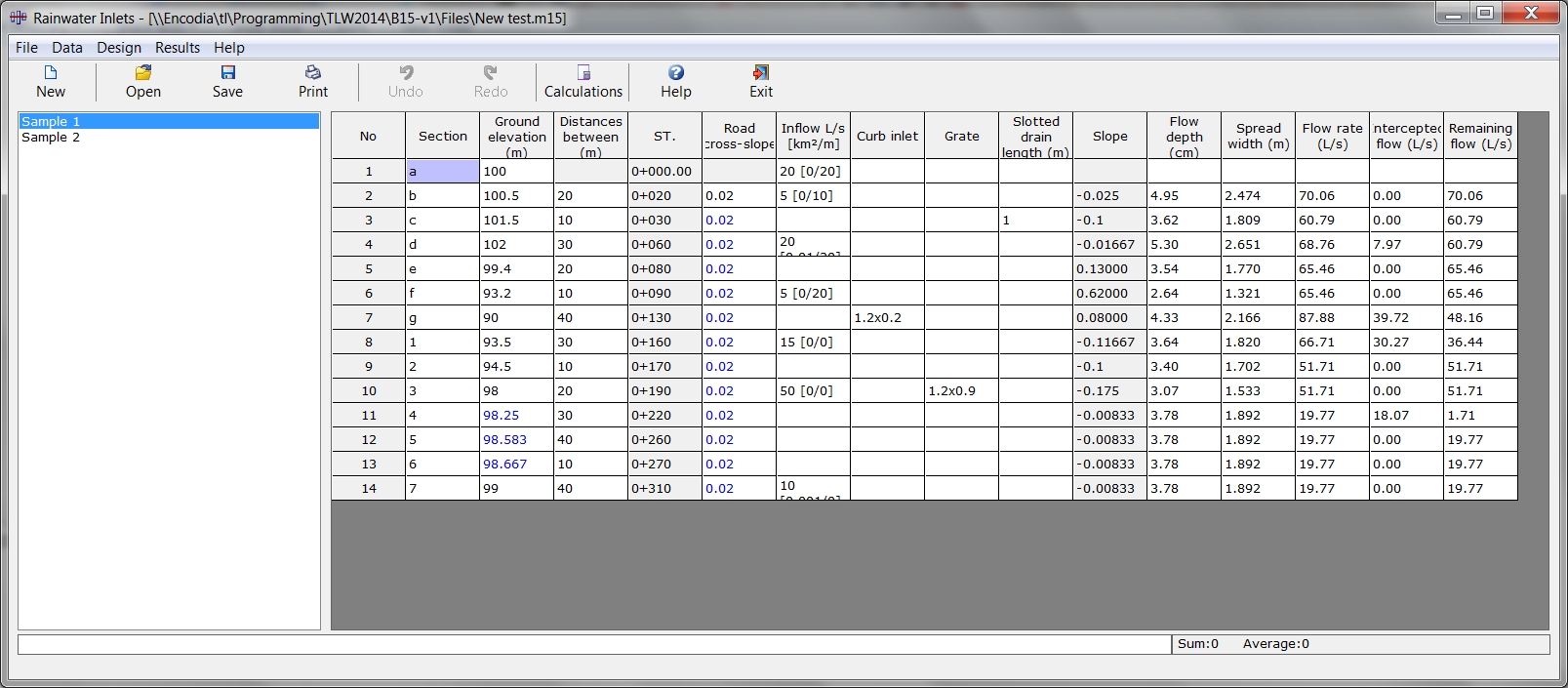

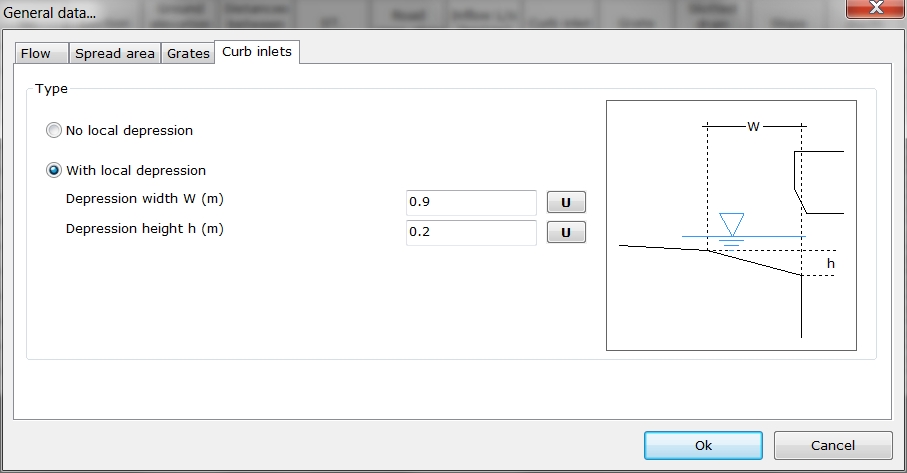

This program calculates the flow in rainwater inlets. The inlets can be grates, curb inlets, slotted drains etc, separately or combined in a road section.

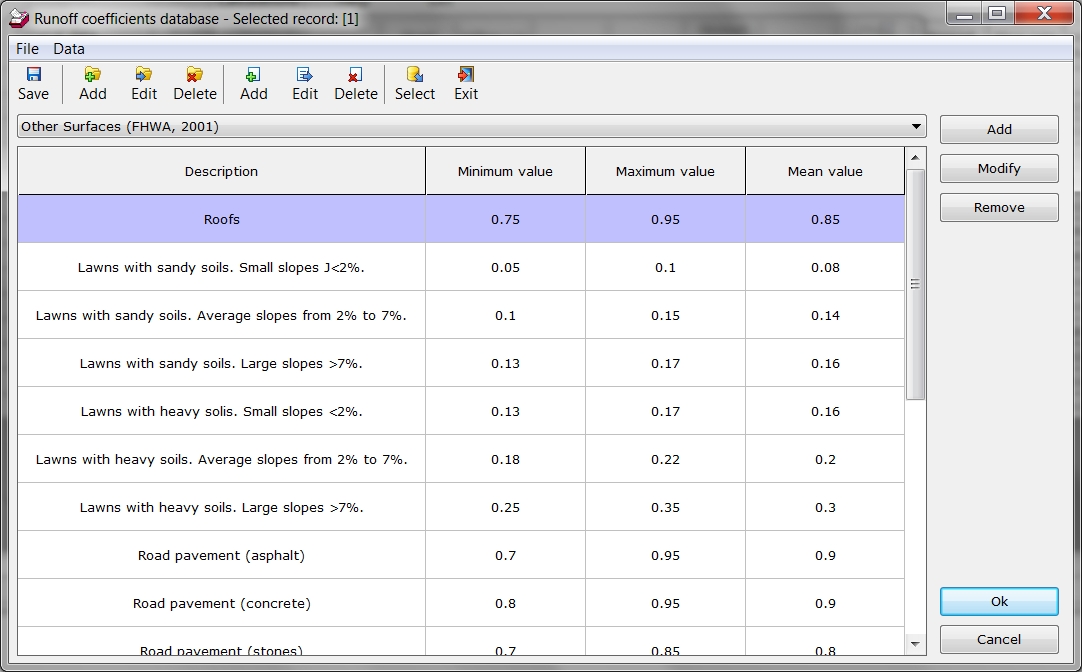

The flow can be input manually or be evaluated by runoff areas and IDF curves.

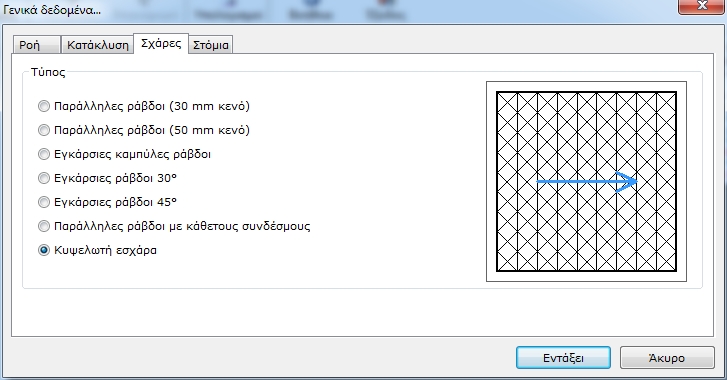

Grates can be one of 7 predefined forms: Parallel bars (30 mm and 50 mm spacing), Transverse curved vane, Transverse 30 deg tilted vane, Transverse 45 deg tilted vane, Parallel bars with transverse rods, Reticuline.
Features
- Calculation of flow in rainwater inlets.

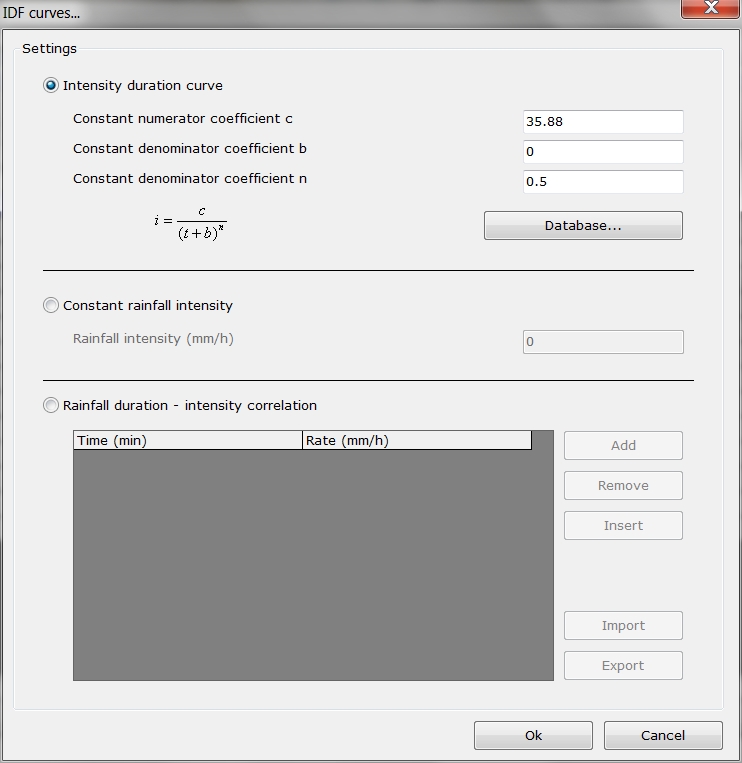

- Evaluation of flow directly or through an IDF curve
- Seven predefined form of grates.
- Easy to use, immediate results.
- Tip of the day.
- Professional reports and printouts.
- Full user guide.
- Live update.
- English and Greek interface.
