This add-in program extends Sewer Networks functionality by adding several useful functions and features. These functions include an automatic design tool, an import capability for subcatchments and the capability of creating contours of equal value, based on point data (properties or results).

Features

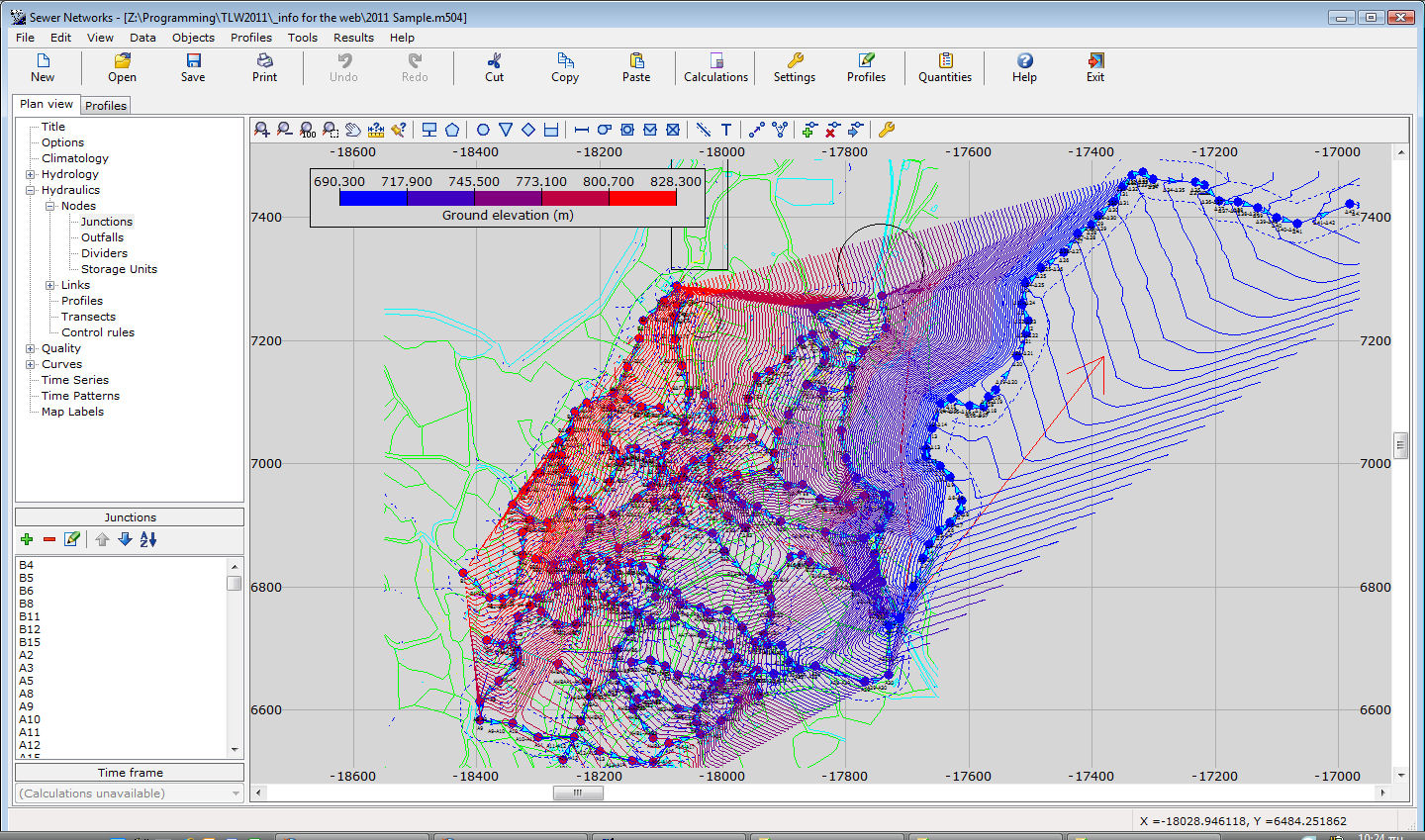

• Capability of creating contours of equal value, based on point data (properties or results), e.g. the ground elevation of nodes.
• Major / minor contours. The major contours are thicker, and they are optionally accompanied by their value. These are also included in the DXF output file.
• Capability of defining a maximum and minimum value for the contours. Contour values that are greater than the maximum value or lower than the minimum value are displayed in separate, customizable colors.
• Automatic design based on the defined pipe specifications.
• Pipe placement in constant depth.
• Vertical movement of the network.
• Flow distribution across the network based on the pipe lengths.
• Sewer area distribution across the network based on the pipe lengths.
• Evaluation of the exact total sewer area in the network.
• Deletion of all inflows in the network.
• Import of subcatchments from closed polylines in DXF files, including connection to the nearest node.
• Direct inflow table.
• Runoff areas table.
• Evaluation of ground elevation from TIN network (3DFaces in DXF files).
• Complete integration in Sewer Networks’ user interface
